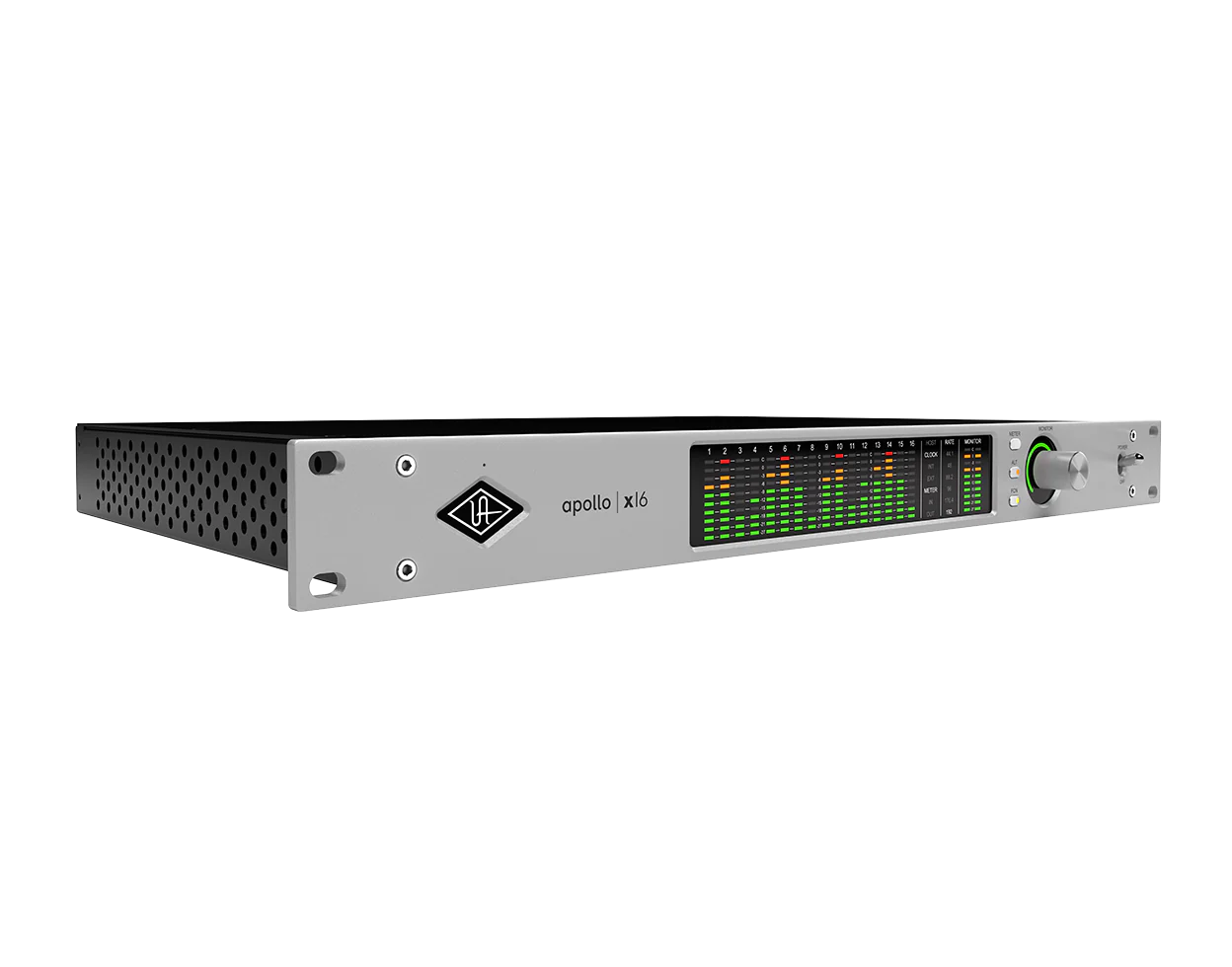

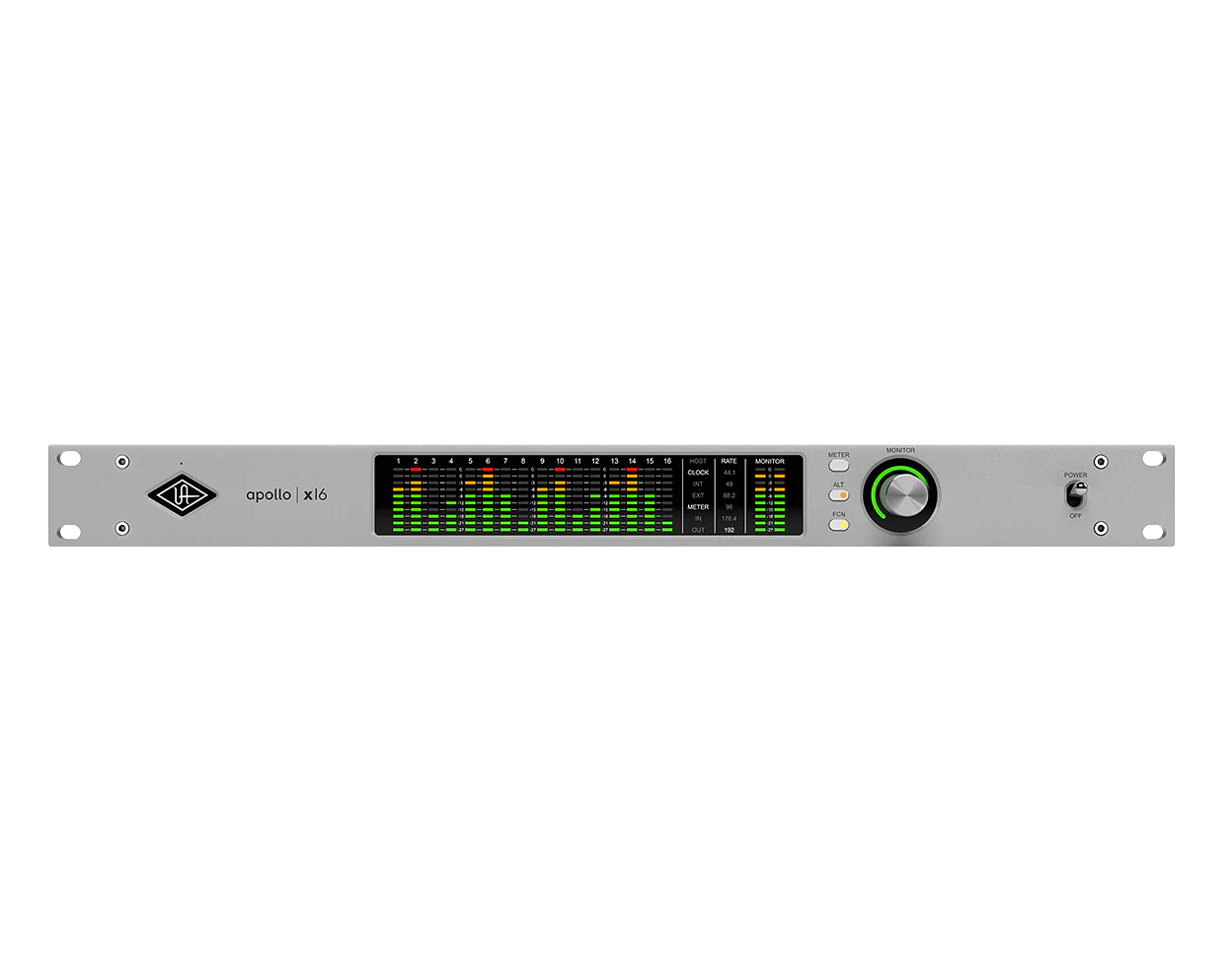

Universal Audio Apollo X16 HERITAGE EDITION Audio Interface

The Apollo x16 Heritage Edition is Universal Audio?s flagship 16-in/18-out Thunderbolt interface with HEXA_Core DSP, mastering-grade conversion, immersive audio formats, full talkback/monitor control, and a premium Heritage plug_in suite ? the ultimate centerpiece for professional recording, mixing, and Dolby Atmos production.

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

1-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Description

Flagship Rackmount Interface with Heritage Analog Bite

The Universal_Audio Apollo x16 Heritage Edition is UA?s top-tier 16_in/18_out Thunderbolt_3 audio interface, designed for professional and immersive studios. It packs elite 24_bit/192_kHz AD/DA conversion, UAD_2 HEXA_Core DSP, 16 analog + 2 monitor outputs via DB_25/XLR, and a coveted Heritage plug_in package, all in a single 1U rack.

You get immersive audio support (up to 9.1.6 Dolby Atmos), talkback, selectable +24_dBu headroom, LUNA DAW integration, and the flexibility to expand up to four Apollos or six UAD devices .


Elite-Grade Conversion & Massive DSP Power

  • 24_bit/192_kHz ?Dual_Crystal? A/D and D/A converters, delivering 133_dB dynamic range and ultra-low noise/distortion

  • UAD_2 HEXA-Core (six SHARC chips) for real-time plug-in chains during tracking and mixing.

  • 16 analog inputs (DB-25) and 16 line outputs + stereo monitor outs (XLR)?switchable between +24_dBu and +20_dBu

  • Immersive audio ready: formats up to 9.1.6 Dolby Atmos, Auro_3D, Sony 360 Reality


Heritage Plug-In Suite & Console Enhancements

This edition includes UA?s Realtime Analog Classics Plus bundle (LA_2A, 1176, Pultec EQ, etc.) plus ten Heritage vintage plug-ins like Fairchild, Helios, V76, UA 610, Oxide Tape, and Pure Plate Reverb .
The console software adds features like monitor correction, plug-in scenes, surround mixing layouts, and advanced talkback routing .


Apollo x16 Heritage Edition ? Key Features

  • 16-in/18-out Thunderbolt_3 interface with rack flexibility

  • HEXA_Core UAD_2 DSP for zero-latency plug-in tracking

  • 24_bit/192_kHz conversion with +24_dBu selectable headroom

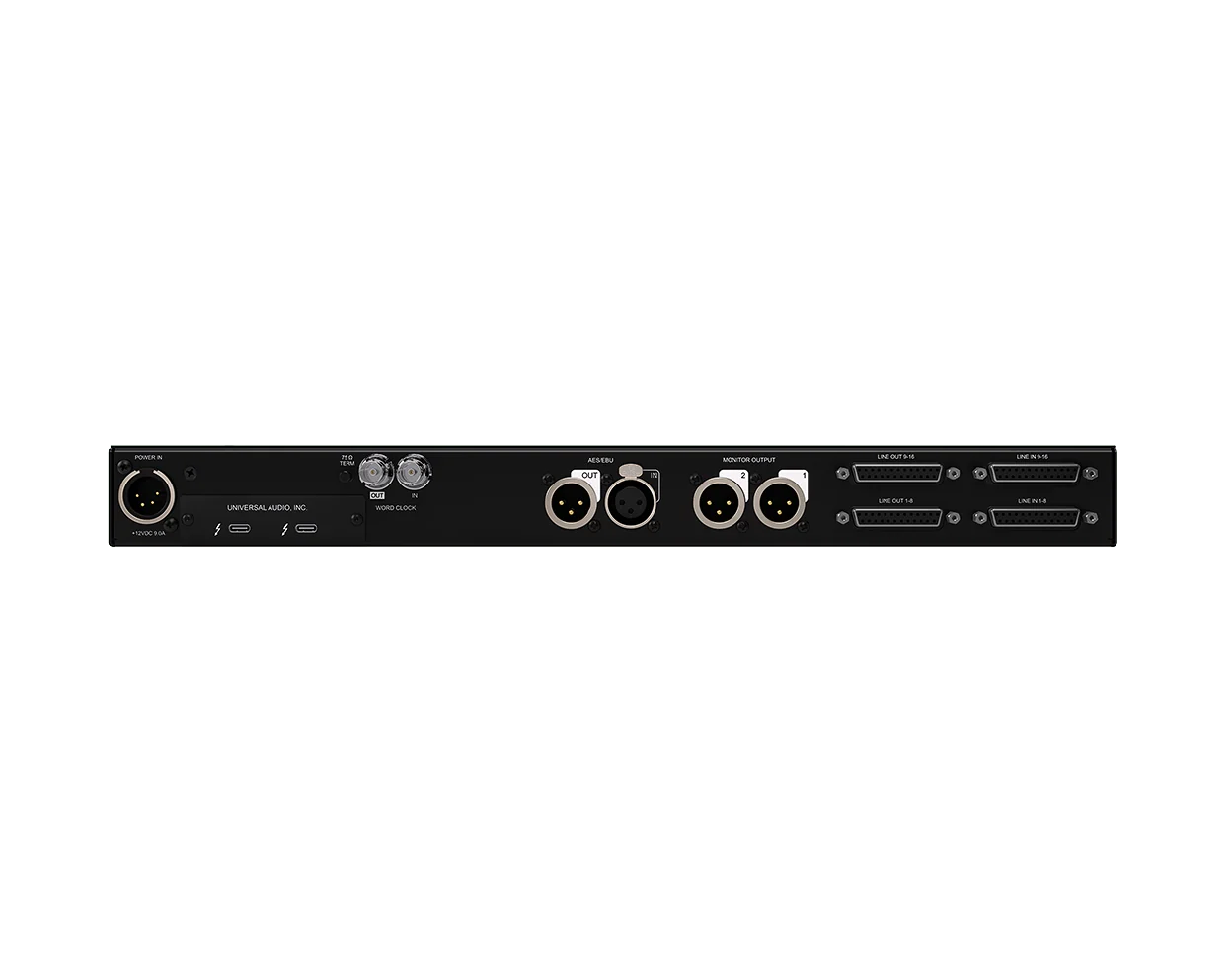

  • DB_25 analog I/O, stereo XLR monitor outs, and AES/EBU optical I/O

  • Immersive audio mixing support (up to 9.1.6)

  • Talkback mic, monitor control, and LUNA DAW integration

  • Includes full Heritage Edition plug-in bundle

Why Choose from Audio Shop Australia?

  • 100% Genuine UA Heritage Edition with full plug_in bundle

  • ?Fast, tracked shipping and local support across Australia

  • ?Trusted by pro studios and immersive audio engineers

  • ?Expert setup advice and secure checkout

About brand

Universal Audio is a legendary name in professional audio, known for its high-quality interfaces, analog emulations, and innovative recording gear. From home studios to world-class setups, UA products deliver exceptional sound and creative control. Find the best of Universal Audio at Audio Shop Australia.

Tech Specs
  • ADC/DAC: 24‑bit / 192 kHz, 133 dB dynamic range, −129 dB THD+N.

  • I/O: 16 analog in, 18 analog out, AES/EBU, Word Clock, stereo XLR monitors

  • DSP: UAD-2 HEXA Core (6 chips).

  • Connectivity: Dual Thunderbolt 3 ports (cascadable)

  • Format: 1U rackmount, desktop compatible

  • Weight ≈ 7.3 kg (16 lb)
